TPU flexible delineator post
Request a QuoteTell us quantity, country and mounting type — a technical answer comes back the same day.
The TPU flexible delineator post marks access boundaries on island noses, lane divisions, car park entrances, service roads and cycle-lane edges. Height, collar arrangement and base fixings are selected for sight distance, ground conditions and the installation plan. Body material, post-impact behaviour and mounting details are confirmed against the selected product datasheet and test documents.
- Marks lane and access boundaries
- Height and collars follow the site
- Fixings are selected with the ground
Key features
- Line boundaryThe installation plan defines the separation line at an island nose or lane edge.
- Height for sight distanceSelect post height with the approach direction and required sight distance.

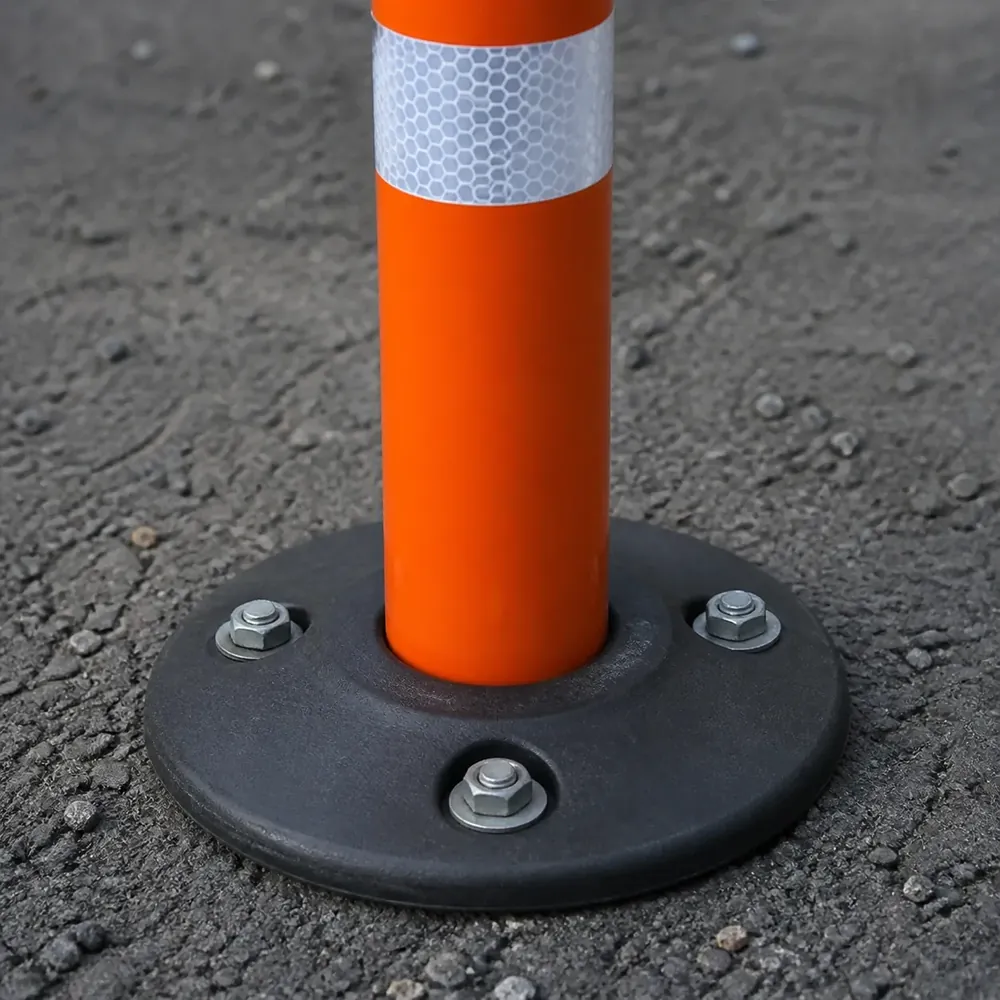

- Reflective collar selectionCollar arrangement and film class are confirmed against the selected product optical documentation.
- Fixings for the groundAssess the base and anchors with the conditions of the asphalt or concrete ground.
- Post-impact inspectionInspect the body, base and fixings together after contact.
- Access requirementsPlan service and pedestrian access with the post line; removal follows the product instructions.
Technical summary
Product selection
| Height and base dimensions | Selected for sight distance and the layout plan; exact dimensions are confirmed against the product datasheet. |
|---|---|
| Body material | TPU grade and post-impact behaviour are confirmed with documents for the selected model. |
| Reflective collars | Collar count, position and film class are matched to the product datasheet and site requirement. |
Fixings and application
| Base and anchors | Ground type, fixing arrangement and anchor selection follow the installation instructions. |
|---|---|
| Removal method | Where access must open, confirm the removal method and fixing details before ordering. |
| Impact and optical documentation | Assess the required performance together with the selected product and the report test conditions. |

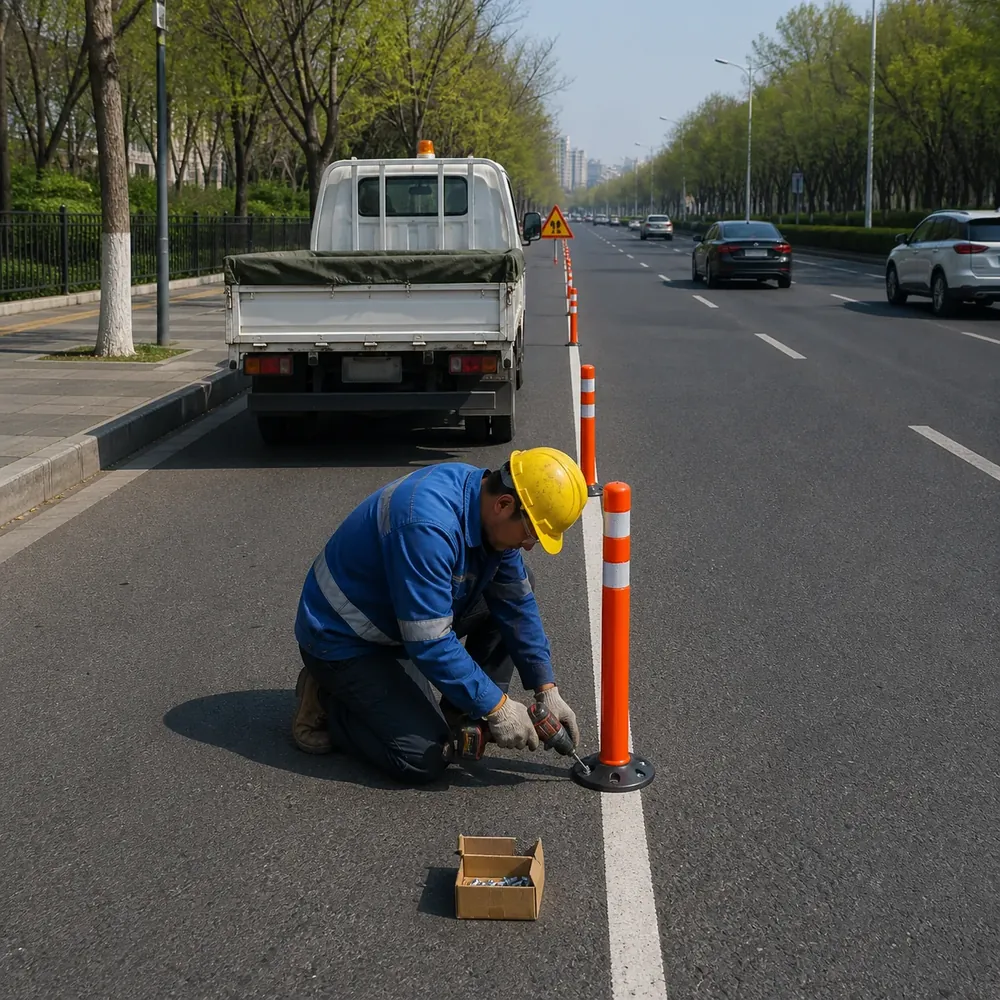

Installation
Method and tools needed
- Layout: Mark the post line on the approved installation plan; check pedestrian and service access together.
- Ground and fixings: Match base seating, anchors, embedment and tightening information to the selected product installation instructions.
- Final check: Check post orientation, base seating and fixings; record compliance with the installation plan before reopening.
Maintenance and cleaning
- Body and base: Check for cracks, permanent deformation and base damage; set inspection intervals from site risk and product instructions.
- Collar surfaces: Check for dirt, detachment and damage; clean according to body and film manufacturer instructions.
- After impact: Assess the body, fixings and ground together; base repair or replacement decisions on the inspection findings.

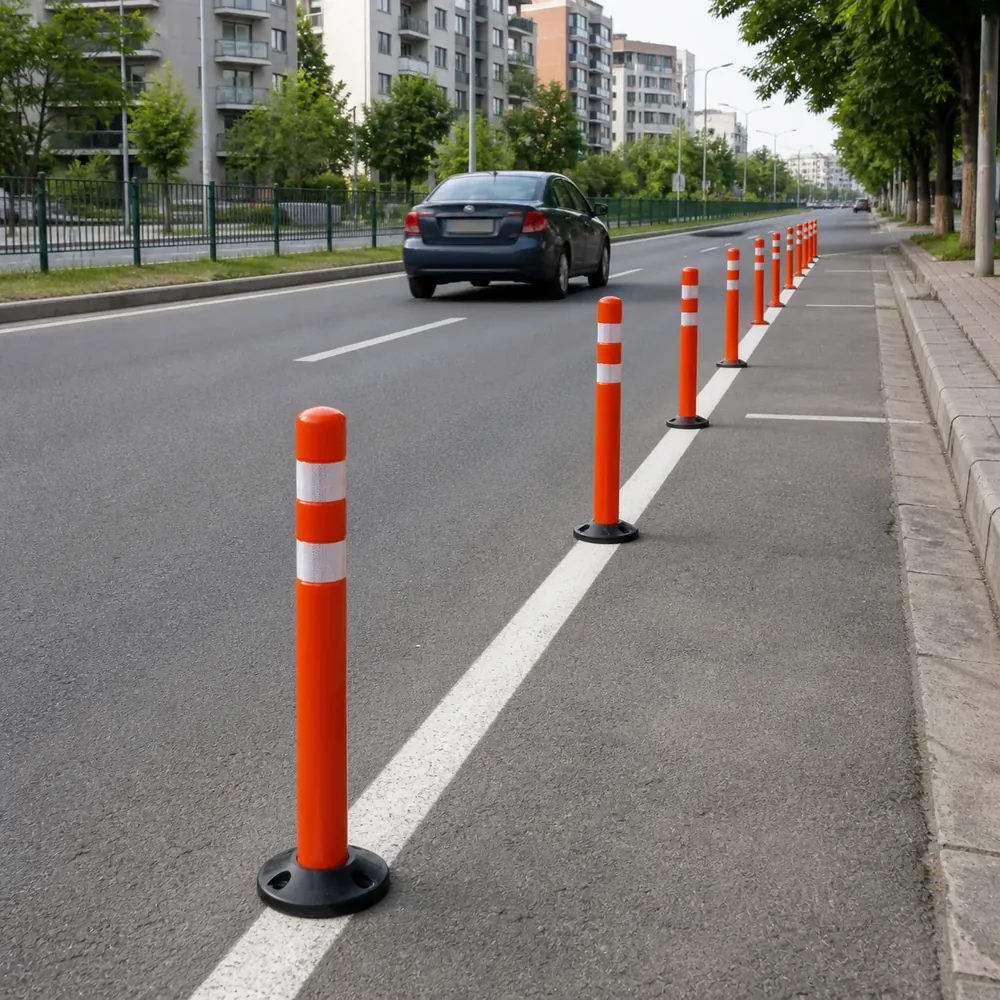

Where it is used
- Island nose. The TPU flexible delineator post marks the boundary at the start of a refuge under the approved installation plan.
- Lane separation. The TPU flexible delineator post line defines lane separation with the road layout and sight distance.
- Car park and service road. The TPU flexible delineator post marks boundaries where vehicle direction and service access are planned together.
- Cycle lane. The TPU flexible delineator post line is designed with the cycle-lane edge and crossing points.
Ordering, documents and shipping
Ordering
- Minimum order
- There is no minimum order requirement. Mixed loads are accepted; you are not asked to fill a pallet or a container with a single item.
- Packing
- Export packing: shrink-wrapped pallets or cartons, with pallet size and gross weight stated on the packing list.
- Container
- The 40'HQ count depends on the height and variant chosen; the quotation states it with the pallet and container count.
- Lead time
- Set by the order quantity; the quotation states it in days and the shipment plan is fixed at order confirmation.
- Origin
- Stated in writing per item in the quotation.
- Delivery terms
- FOB · CFR · CIF · DAP
Shipping
- Pallet. Posts ship without bases, and the bases travel in separate cartons · Pallet size and gross weight are stated on the packing list · Mixed-height loads are accepted · The container count follows the height chosen and is quoted with the pallet number
- 40'HQ. 40'HQ calculation
Downloads
- Technical document (PDF)
- Specification text (PDF)

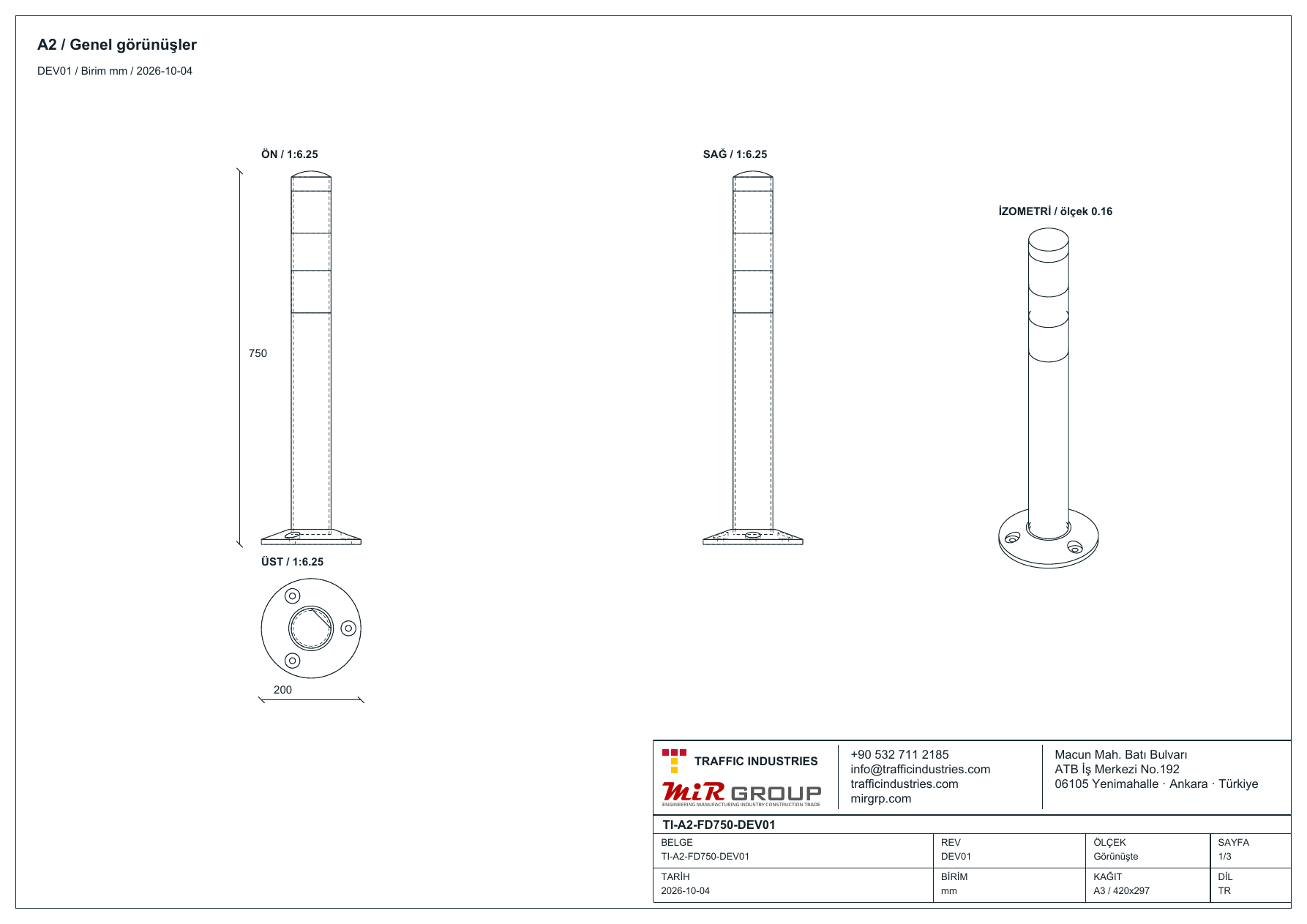

- DEV01 · General views (Turkish) · 1.2 MB

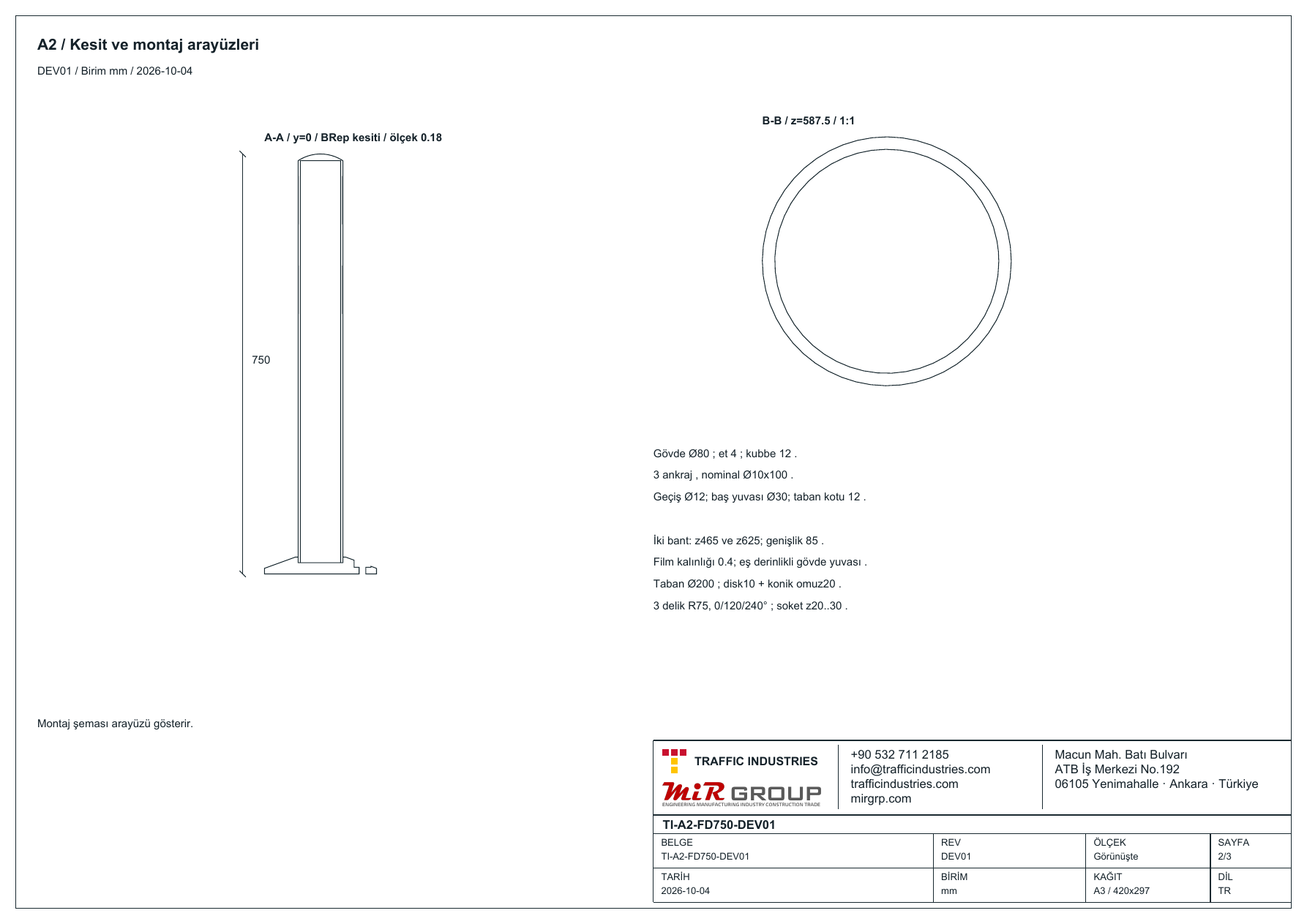

- DEV01 · Sections and installation interfaces (Turkish) · 1.1 MB

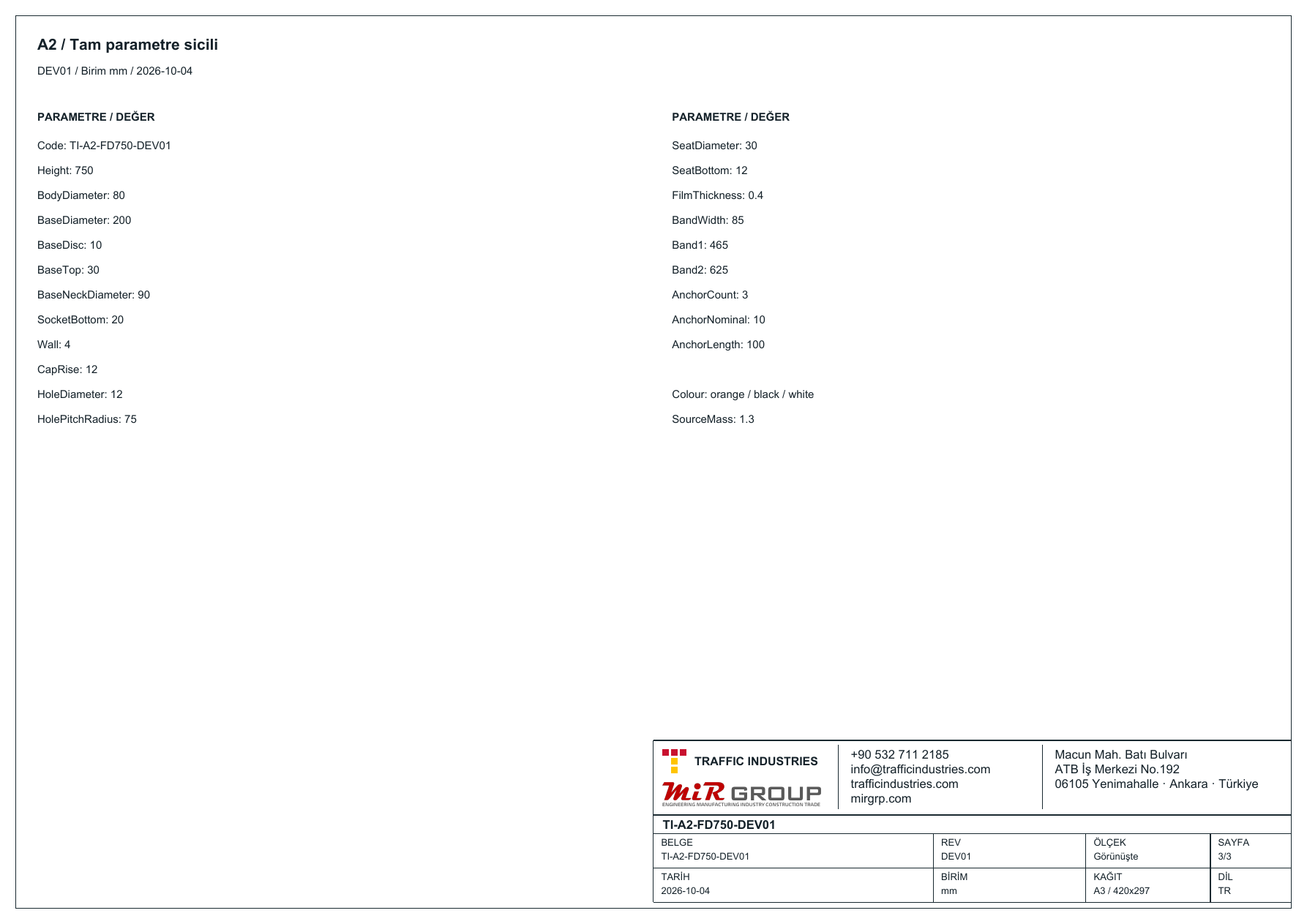

- DEV01 · Parameter register (Turkish) · 1.1 MB
- All files: Downloads
The files are free and download without registration.
Standard reference
- EN 12899-3official record
| Project requirements | The quotation defines the installation country, road layout and specification. |
|---|---|
| Product documents | Material, impact and optical properties are confirmed with the selected product datasheet and reports. |
Frequently asked
What height of TPU flexible delineator post should I choose?
Select height with the approach direction, sight distance and intended line. Confirm the selected model height, base and collar arrangement together in its datasheet.
How is a TPU flexible delineator post fixed?
Fixings follow the ground type and selected model installation instructions. If removal is required, confirm the method and fixing details before ordering.
When should a TPU flexible delineator post be replaced after impact?
If cracks, permanent deformation, base damage or collar damage are found, inspect the body and fixings together. Reuse, repair or replacement follows the selected product instructions and inspection findings.
How are flexibility and impact behaviour confirmed?
Assess the selected model test report together with the specimen and test conditions. A material name or product appearance alone does not define impact behaviour.
